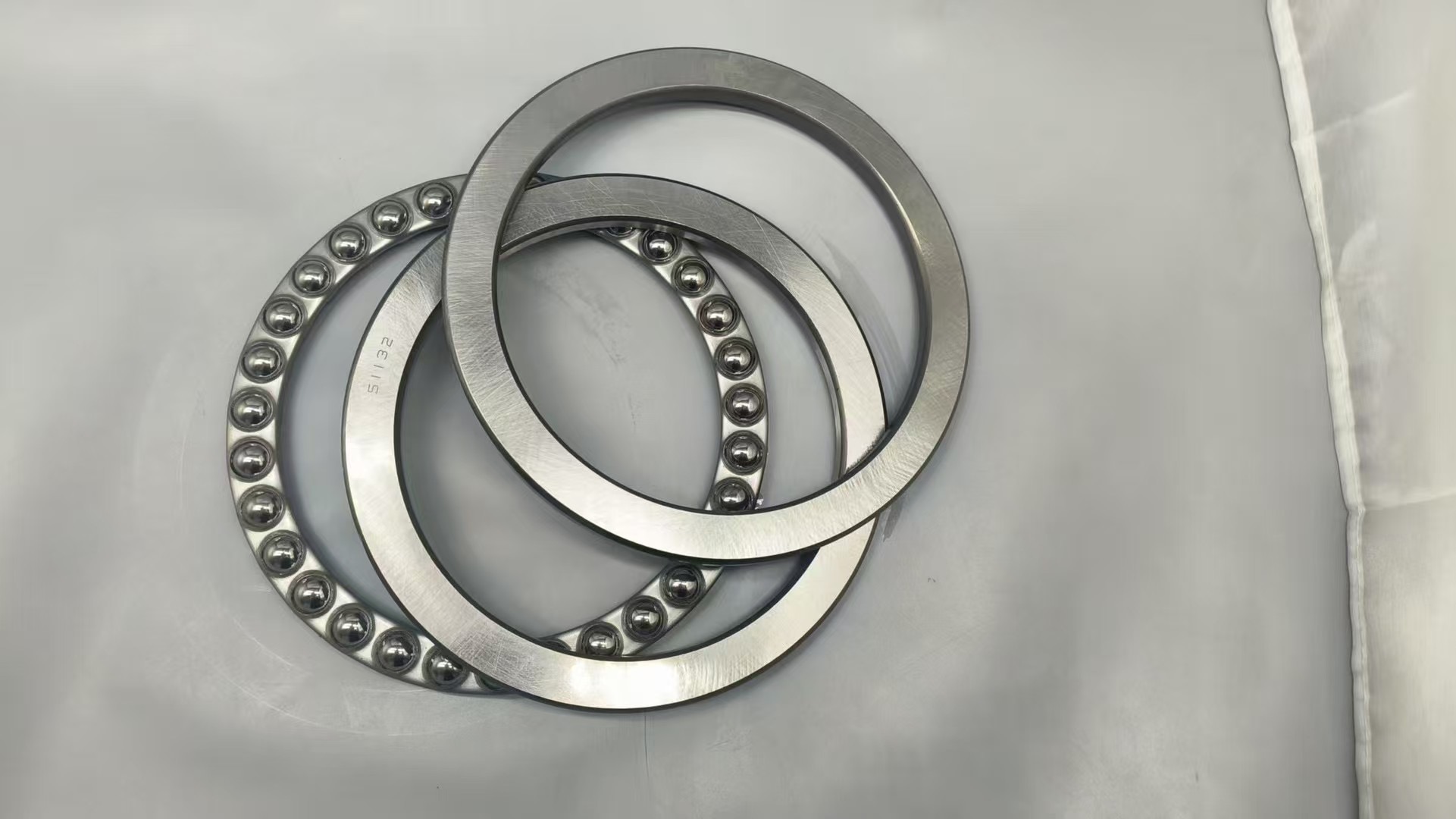

Thrust Ball Bearings 19919816
The parameters of bearing model 51132 are as follows:
Parameters
Inner Diameter: 160mm
Outer Diameter: 200mm
Thickness: 31mm
Weight: 2.28kg
Rated Dynamic Load: 112kN
Rated Static Load: 425kN
Grease Lubrication Speed: 1200rpm
Oil Lubrication Speed: 1800rpm
Applications
Suitable for low-speed mechanical components subjected to unidirectional axial loads, such as crane hooks, vertical water pumps, ball mills, nonwoven fabric machinery, etc.
Advantages
Structural Features: The shaft ring, seat ring, and rolling elements are separable, facilitating installation and disassembly.
Suitable Scenarios: Suitable for applications with limited installation space.
Lubrication Methods: Supports both grease and oil lubrication; grease lubrication speed is 1200rpm, oil lubrication speed is 1800rpm.
