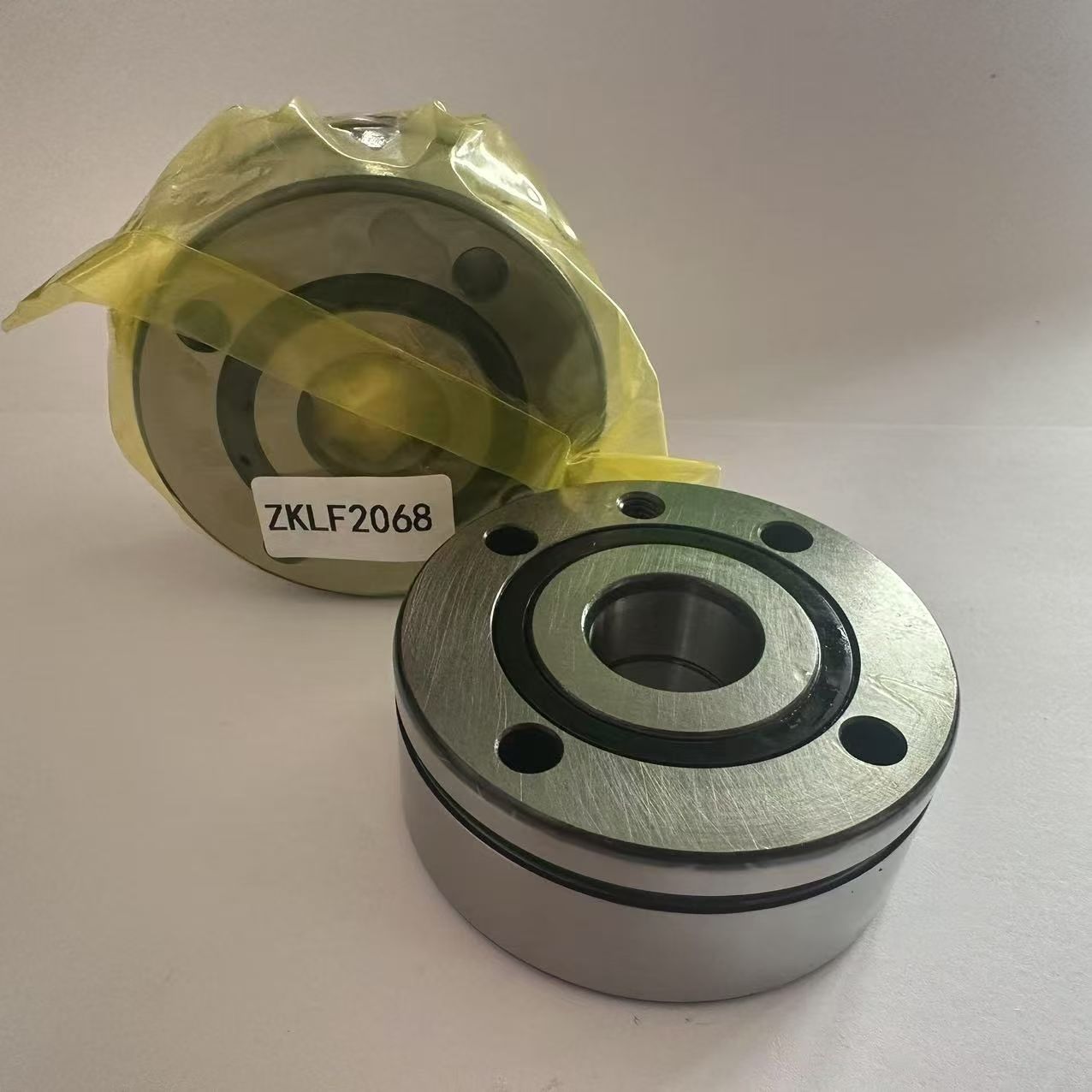

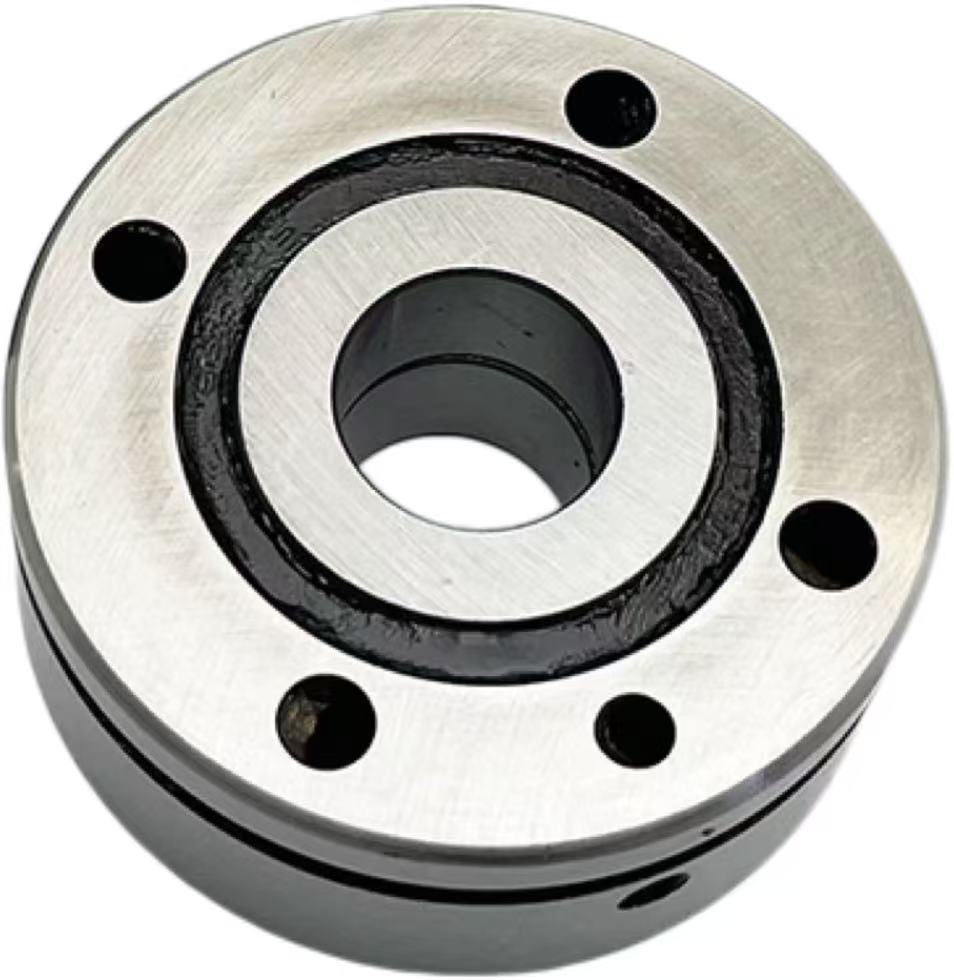

ZKLF2068 Thrust Angular Contact Ball Bearing 32314585516
ZKLF2068 is a thrust angular contact ball bearing commonly used in high-precision, high-rigidity ball screw drive systems, such as machine tools, medical equipment, and precision engineering fields. Based on available information, its core parameters are as follows:
Inner Diameter (d): 20 mm (tolerance -0.005 mm)
Outer Diameter (D): 68 mm (tolerance -0.01 mm)
Thickness (B): 28 mm (tolerance -0.25 mm)
Weight: Approx. 0.61 kg
Contact Angle: 60กใ, capable of withstanding both radial and axial loads
Basic Rated Dynamic Load (Axial): 26000 N
Basic Rated Static Load (Axial): 47000 N
Grease-Lubricated Limiting Speed: 3000 r/min
Axial Stiffness: 650 N/µm
Bearing Friction Torque: 0.3 Nm
Axial Preload: 9079 N
Mounting Method: Screw mounting, typically using M6 fixing bolts, in a 4กม90กใ or... 8กม45กใ
Sealing Design: Dustproof and waterproof with lip seals on both sides (2RS design), suitable for complex working conditions.
