F696ZZ Deep Groove Ball Bearings 420161216

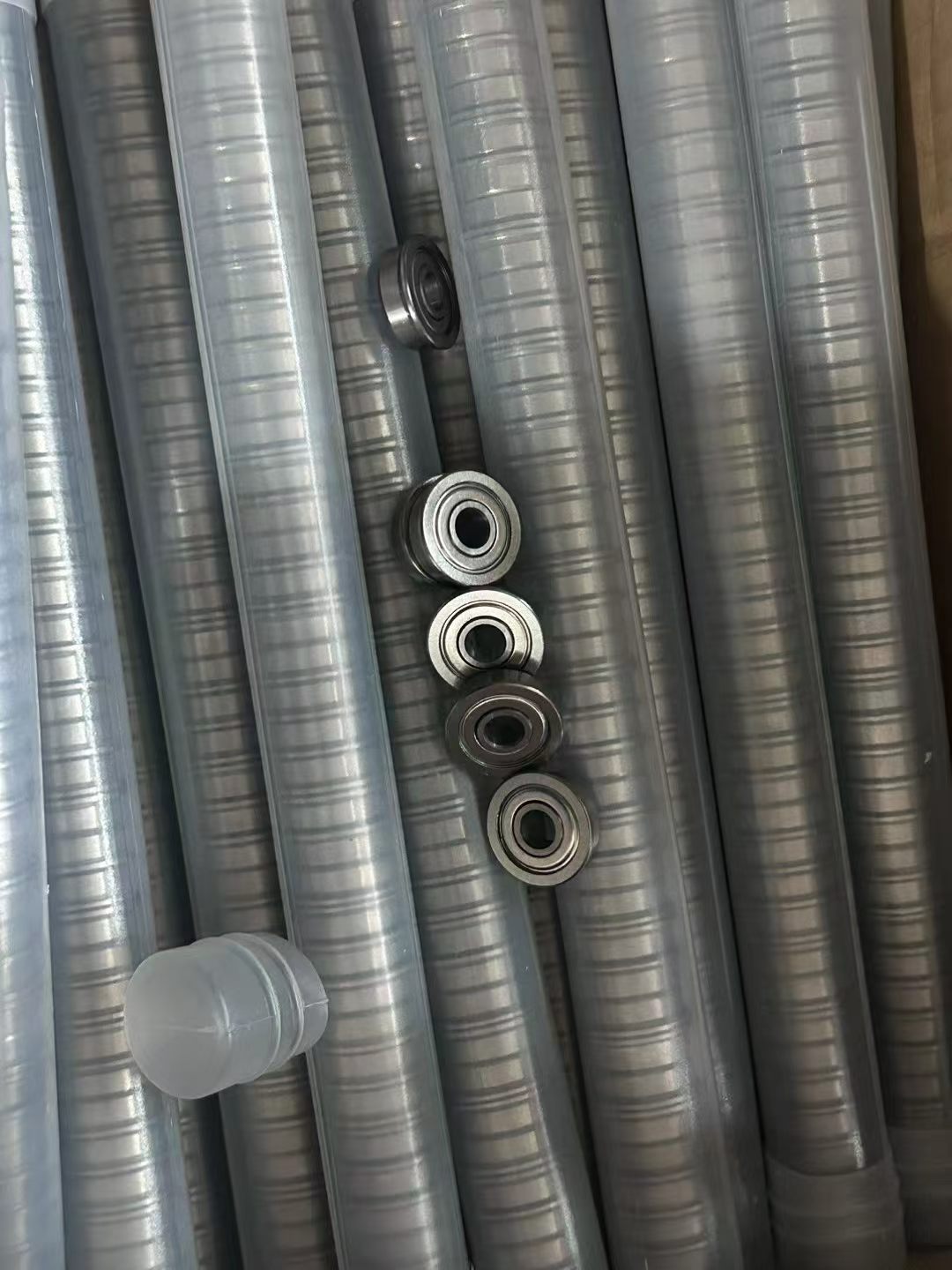

The F696ZZ bearing is a flanged outer ring deep groove ball bearing with dust covers on both sides, widely used in various small rotating equipment. Its core parameters are as follows: Basic Dimensions
Inner Diameter (d): 6 mm
Outer Diameter (D): 15 mm
Thickness (B): 5 mm
Flange Outer Diameter (Df): Approx. 17 mm (some manufacturers specify D1 = 17 mm)
Load and Speed Performance
Rated Dynamic Load (Cr):
1.75 kN (1750 N)
1730 N (1.73 kN)
Rated Static Load (Cor):
0.67 kN (670 N)
670 N (NSK)
Limiting Speed (Grease Lubrication):
45,000 rpm
40,000 rpm
Limiting Speed (Oil Lubrication):
54,000 rpm
45,000 rpm
Other Characteristics
Structure: Dust covers on both sides (ZZ or ZZ1), flange outer ring with mounting holes
Weight:
Approx. 3.9–4.3 grams (slight variations depending on brand)
Applications: Gasoline/diesel engine parts; Screw pumps, mixed-flow pumps, rotary pumps; Woodworking machine tools, small motors, office equipment, etc.
