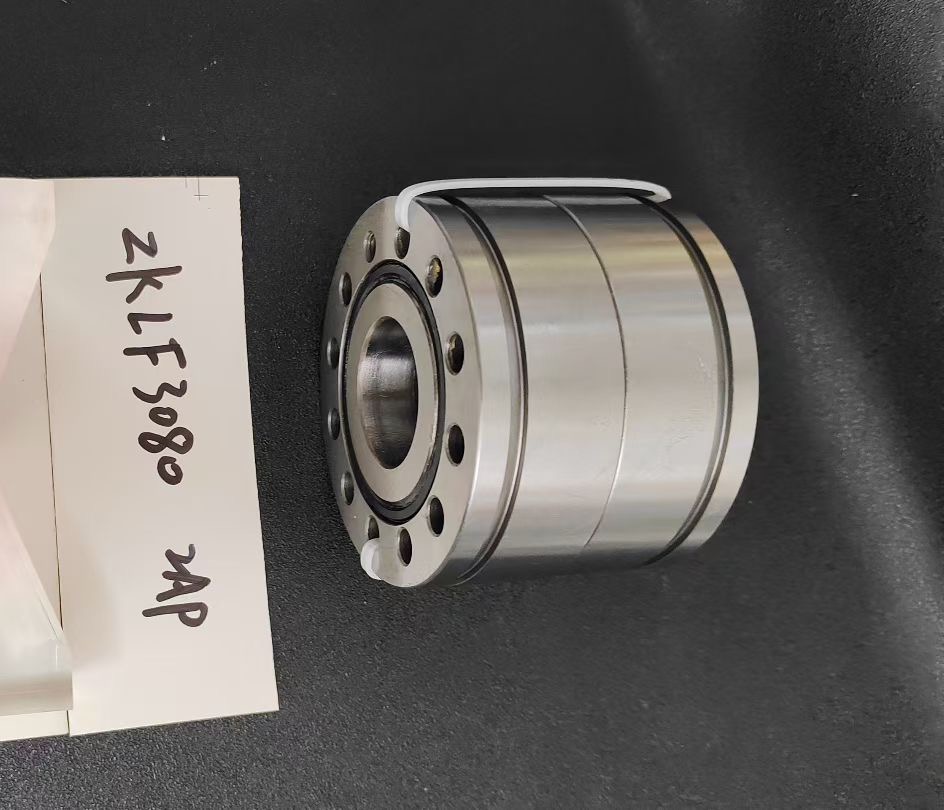

ZKLF3080-2AP Thrust Angular Contact Ball Bearing 52716311016
ZKLF3080-2AP is not a standard model; it should actually be ZKLF3080-2RS-2AP. Its core parameters are as follows:
Inner Diameter (d): 30 mm (tolerance -0.005 mm)
Outer Diameter (D): 80 mm (tolerance -0.010 mm)
Thickness (B): 56 mm (different from the 28 mm of the standard ZKLF3080-2RS)
Type: Bolted-mount mating thrust angular contact ball bearing (double row, double-direction, with 2RS seal)
Basic dynamic load rating (Ca): 47.5 kN
Basic static load rating (Coa): 127 kN
Grease-lubricated limiting speed: 2200 rpm
Weight: ¡Ö 1.56 kg
Mounting: Requires 6¡ÁM6 set screws (DIN) 912-10.9 (excluding), with locknut (e.g., ZM30/AM30)
Axial preload: ¡Ö 10451 N (typical paired value)
Axial runout: ¡Ü 2.5 ¦Ìm (based on inner ring rotation)
