Automobile Wheel Bearings 611350016

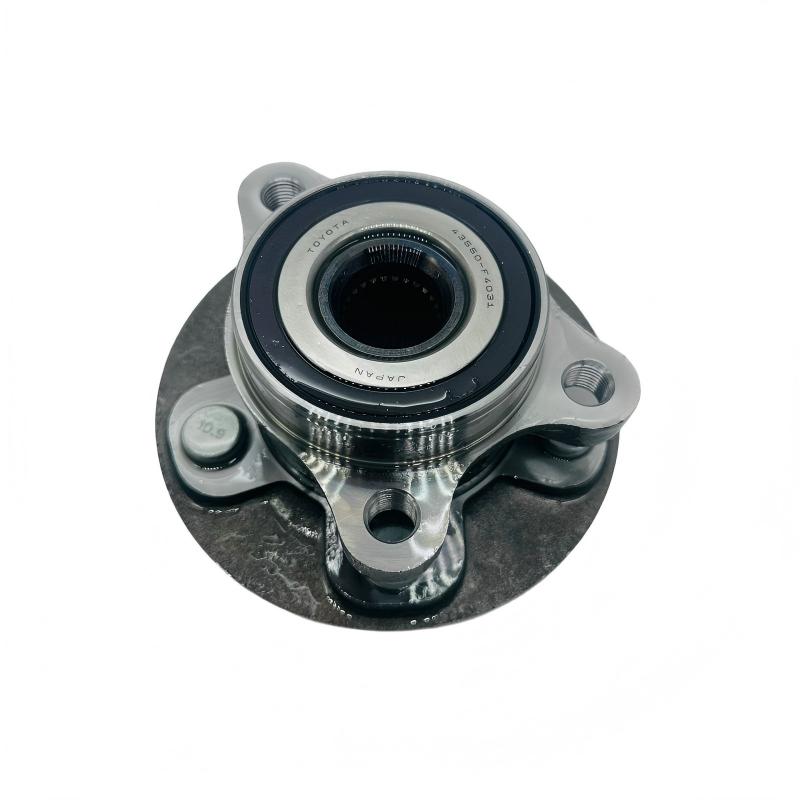

43550‑F4031 (Toyota OE Part Number)
Type: Front Wheel Hub Assembly (Front Right) ¡ª 3rd Generation Hub Bearing, featuring Double-Row Angular Contact Ball Bearings + Flange + Studs + Integrated ABS Sensor.
I. Core Specifications (Dimensions identical to 43550‑F4030)
Model: 43550‑F4031 (Front Right); 43550‑F4030 (Front Left)
Structure: Double-row angular contact, sealed and maintenance-free, integrated ABS tone ring
Inner Diameter: 30 mm
Outer Diameter: Approx. 136 mm (Flange)
Overall Width: Approx. 78 mm
Spline: Internal Spline (Drive Wheel)
Studs: 4 ¡Á M12
Weight: Approx. 2.8¨C3.0 kg
Material: GCr15 Bearing Steel
Equivalent Models: VKBA7811, 62BWKH32, BR931111
II. Compatible Vehicles (Toyota / Lexus)
Toyota Corolla E210 (2019¨C )
Toyota C-HR / IZOA AX10 (2016¨C )
Toyota Levin GT / Allion A20 (Asian Market)
Toyota Corolla Cross
Lexus UX Series
III. Application & Features
Application: Front drive wheel hub assembly; designed to simultaneously withstand both radial and axial loads, with integrated ABS signal output capability.
Features:
Maintenance-Free: Double-sealed and pre-greased; offers a service life of approximately 100,000 kilometers.
Highly Integrated: Combines the bearing, flange, studs, and ABS sensor into a single unit for direct replacement.
Side-Specific: F4031 = Front Right; F4030 = Front Left. These parts are side-specific and cannot be interchanged.
