7408BM Angular Contact Ball Bearings 7241614416

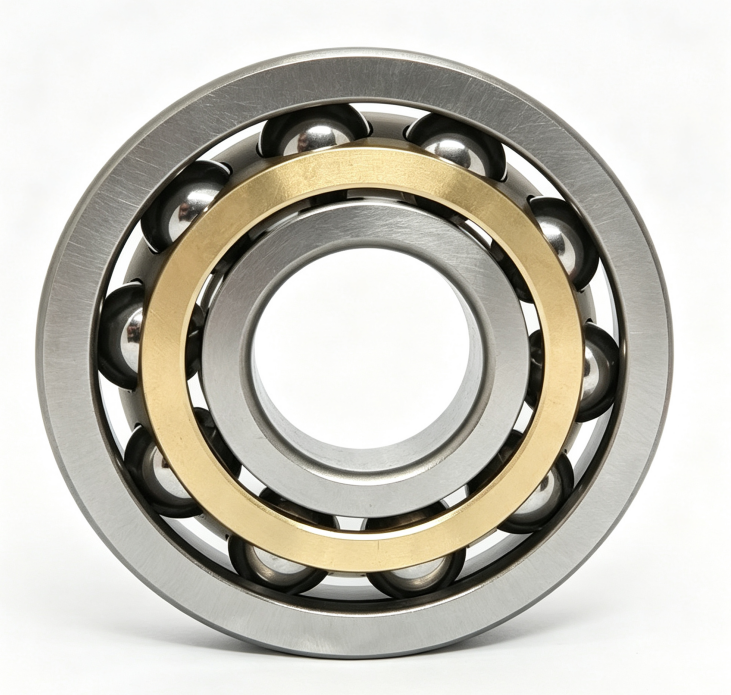

7408BM is a single-row angular contact ball bearing with the following core parameters: inner diameter 40mm ¡Á outer diameter 110mm ¡Á width 27mm, contact angle 40¡ã, machined brass cage, and basic rated dynamic load 70.2kN and static load 45kN. Main Dimensions and Specifications
Inner Diameter (d): 40 mm
Outer Diameter (D): 110 mm
Width (B): 27 mm
Weight: Approx. 1.4 kg
Contact Angle: 40¡ã (Suffix "B" indicates rolling element guidance)
Cage: Machined brass (Suffix "M" indicates rolling element guidance)
Chamfer Radius: Minimum 1.5¨C2.0 mm
Load and Speed Performance
Basic Rated Dynamic Load (C): 70.2 kN
Basic Rated Static Load (C₀): 45 kN
Fatigue Load Limit (Pu): 1.9 kN
Reference Speed: 8000 r/min
Limiting Speed: Approx. 11000 r/min r/min (can be higher under oil lubrication conditions, depending on the lubrication method)
Model Analysis and Application Characteristics
Model Structure: "7" represents angular contact ball bearing, "408" represents the size series and inner diameter code, "B" indicates a 40¡ã contact angle, and "M" indicates a machined brass cage.
Force Characteristics: Can withstand radial loads and unidirectional axial loads simultaneously; single-row designs require paired installation (back-to-back/face-to-face) to withstand bidirectional axial forces or overturning moments.
Typical Applications: Machine tool spindles, high-speed motors, steam turbines, automotive differentials, and other high-speed applications requiring high axial rigidity.
