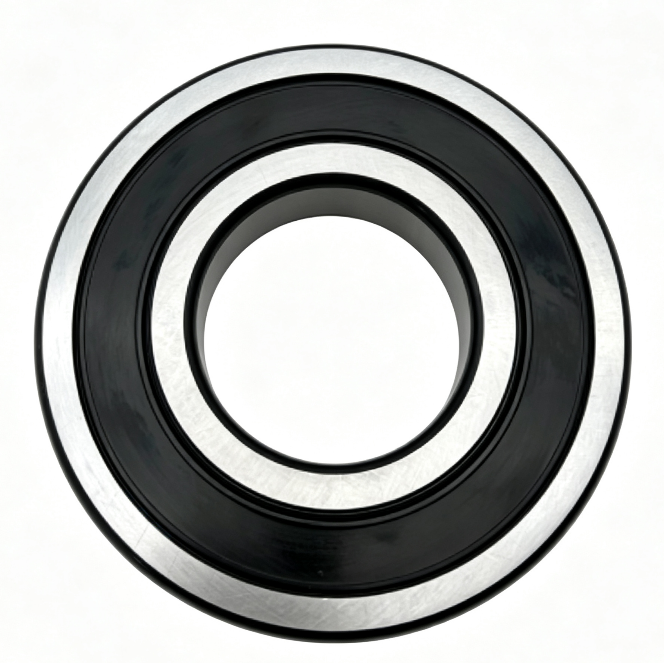

6312 2RS Deep Groove Ball Bearings 82015413816
6312-2RS is a deep groove ball bearing.
Core Parameters:
Inner Diameter (d): 60 mm
Outer Diameter (D): 130 mm
Width (B): 31 mm
Weight: Approx. 1.67 kg
Sealing Type: Double-sided contact rubber seal (2RS), good dust and water resistance, but slightly lower speed than open seals
Load Capacity: Primarily bears radial loads, but can also withstand bidirectional axial loads
Basic Rated Dynamic Load (Cr): Approx. 82.0 kN
Basic Rated Static Load (Cor): Approx. 52.0 kN
Limiting Speed: Grease lubrication: Approx. 3400-3600 r/min; Oil lubrication: Up to 6000-6300 r/min
Minimum Chamfer Radius (rmin): 2.1 mm
Older Domestic Model: 180312
