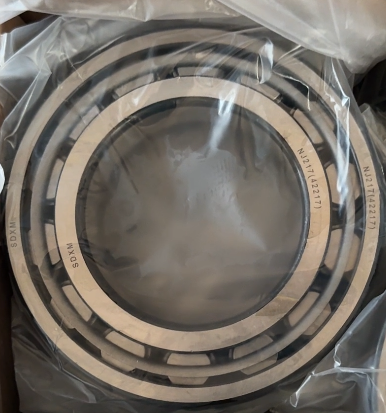

NJ217 Cylindrical Roller Bearing 91716131116
NJ217 cylindrical roller bearing specifications are as follows:
Inner diameter: 85 mm
Outer diameter: 150 mm
Thickness: 28 mm
Dynamic load rating (Cr) ~115 kN indicates the bearing's fatigue life; a higher value indicates a longer life.
Static load rating (Cor) ~108 kN indicates the bearing's maximum static load capacity.
Limiting speed (grease lubrication) ~4800 r/min (maximum permissible speed for grease lubrication).
Limiting speed (oil lubrication) ~5600 r/min (maximum permissible speed for oil lubrication).
