Double direction thrust angular contact ball bearings 9291561016
The ZKLF2575-2RS bearing specifications are as follows:
Dimensions
Inner Diameter: 25mm
Outer Diameter: 75mm
Thickness: 28mm
Sealing Method: Contact seal (2RS designation)

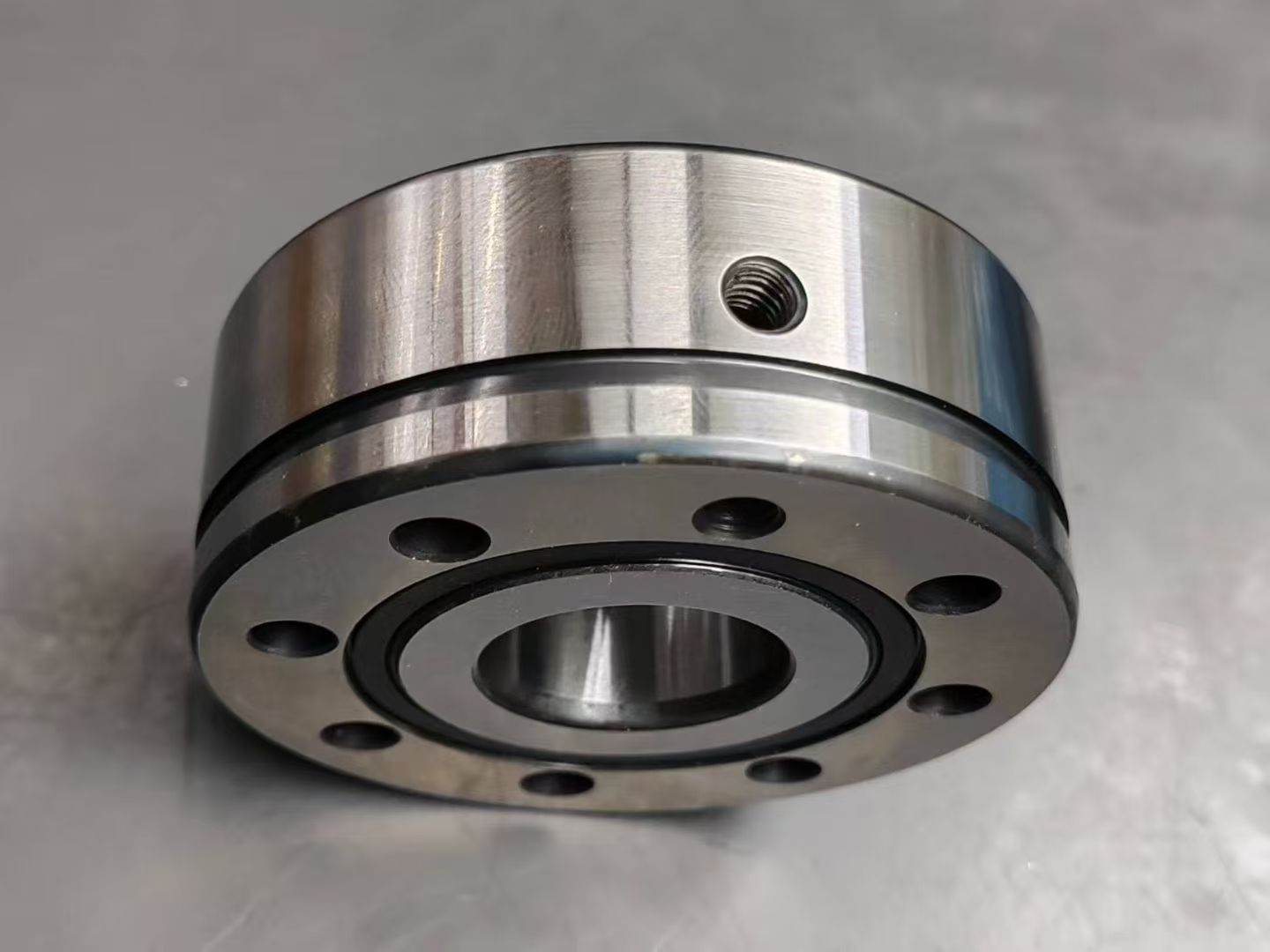

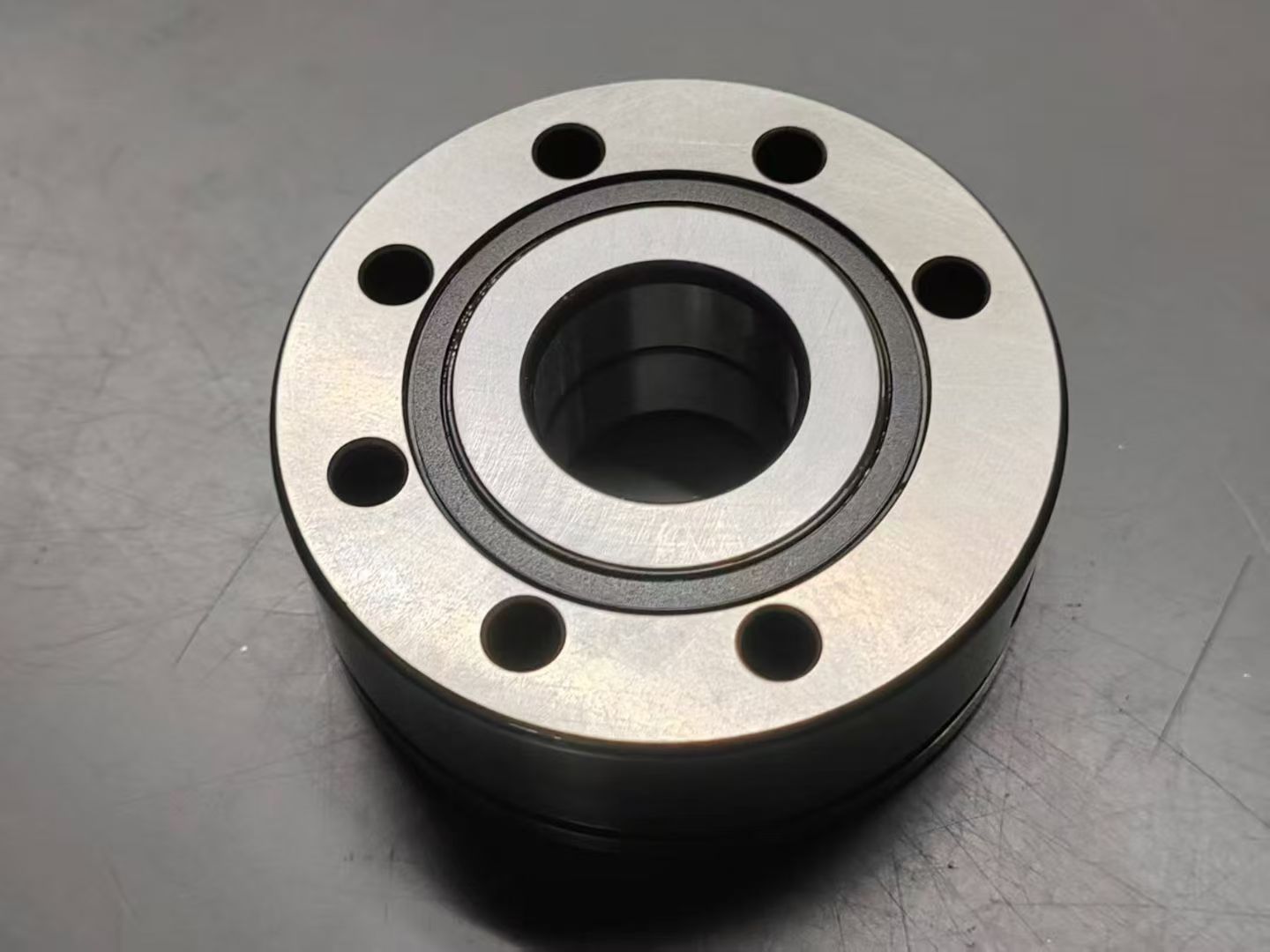

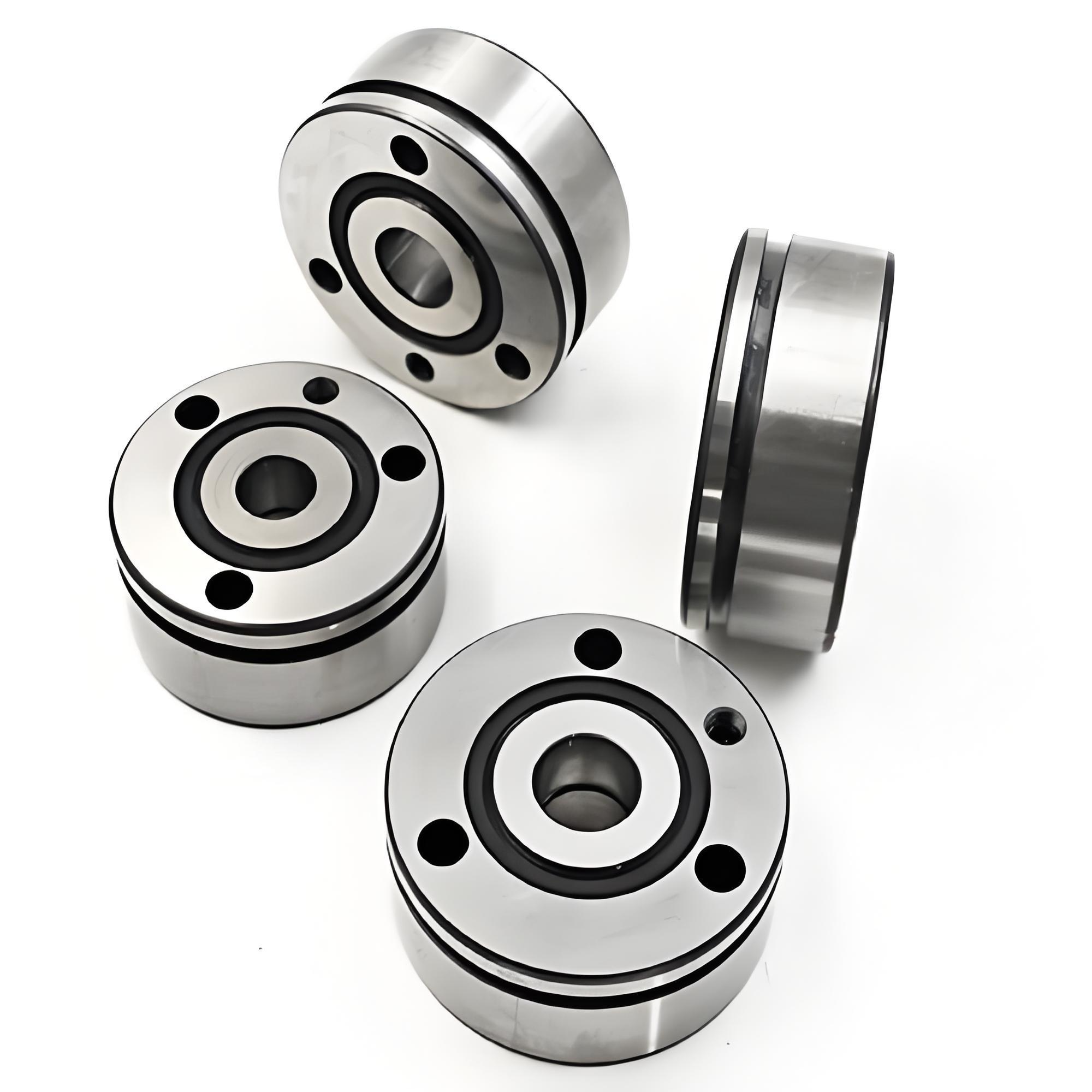

Real product pictures
Mounting Parameters
Fixing Method: Outer ring with mounting holes for direct bolt fastening
Supporting Nut: ZMA25/45.AM25 locknut recommended
Performance Parameters
Dynamic Load Rating: 27.5 kN
Static Load Rating: 55 kN
Maximum Speed for Grease Lubrication: 2600 rpm
Friction Torque: 0.4 N¡¤m
Setting Screw Tightening Torque: 25 N¡¤m
Applications
Suitable for machine tool screw drive systems, capable of withstanding radial and bidirectional axial forces, supporting axial preload, and offering high rigidity and precision.
