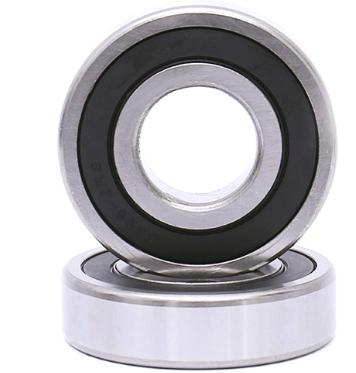

6306 2RS Deep Groove Ball Bearings 101514514516
Basic Parameters
Inner Diameter: 30 mm
Outer Diameter: 72 mm
Thickness: 19 mm
Weight: Approximately 0.345-0.352 kg (may vary between brands)
Speed Range
Grease Lubrication: Up to 6400 rpm
Oil Lubrication: Up to 12000 rpm
Load Capacity
Basic Dynamic Load Rating (Cr): Approximately 26.7 kN
Basic Static Load Rating (Cor): Approximately 15 kN
Structural Features
Designed with seals on both sides, it can withstand radial loads and a certain amount of axial load, and allows for axial displacement and slight tilt (tilt angle ¡Ü 8'-16').
